Refrigerant Air Dryers
The Refrigerant Air Dryer that we have developed and designed, stands testimonial to SPIN AQM guiding factors: remarkable attention to detail, effort to provide the best quality and engineering prowess. Our dryer stands out from others by being a core product rather than being an accessory which comes along with a compressor package. A lot of research, planning and effort has gone into the product to make it one for the long run. So when we say it’s BUILT TO LAST, we mean it.
Working Principle
Refrigerant drying cools the compressed air, whereby a large amount of the water condenses and can be separated. The compressed air is then heated so that condensation does not form on the outside of the pipe work system. The compressed air cooling takes place via a closed coolant system, where a refrigerant cooling agent is employed.
SPIN AQM uses environment-friendly gases for this purpose. By cooling the compressed incoming air using the cooled outgoing air, energy can be saved to a maximum extent. The unique design of integrated evaporator is scaled to the exact requirement of compressed air handling. This gives greater efficiency and ultimately saves power.

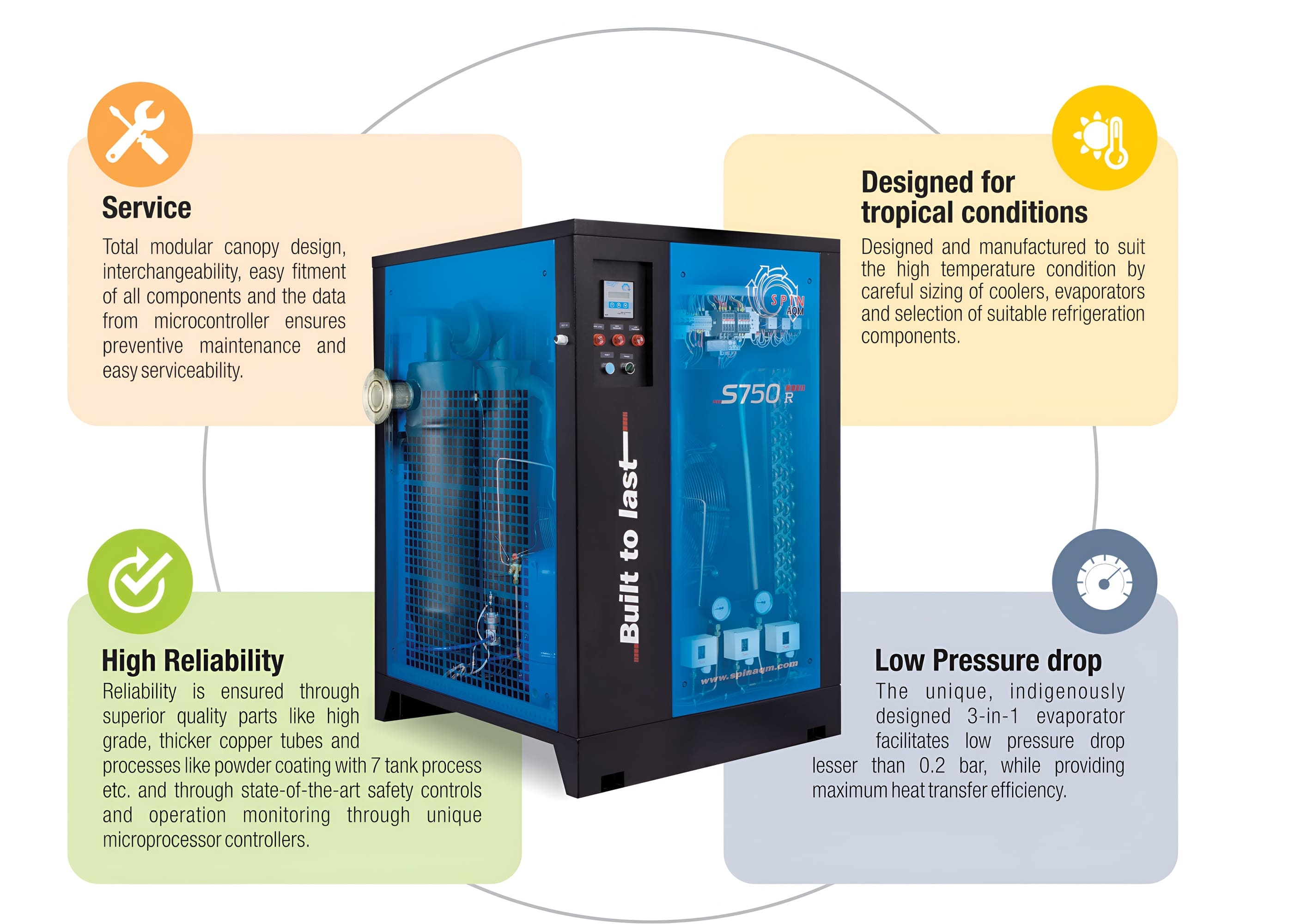

Salient Features
Application Areas

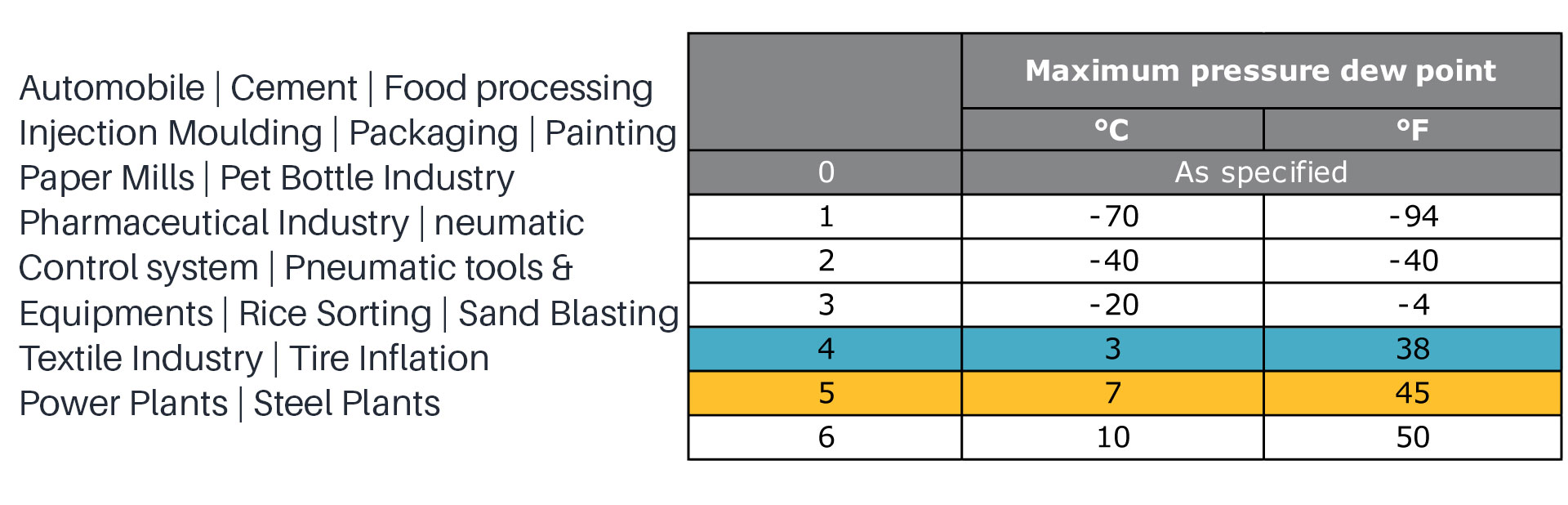

ISO 8573-1 Quality Spin AQM Refrigerant Air Dryer models can be used for applications that require ISO 8573 - 1 Class 4 & Class 5 air quality.

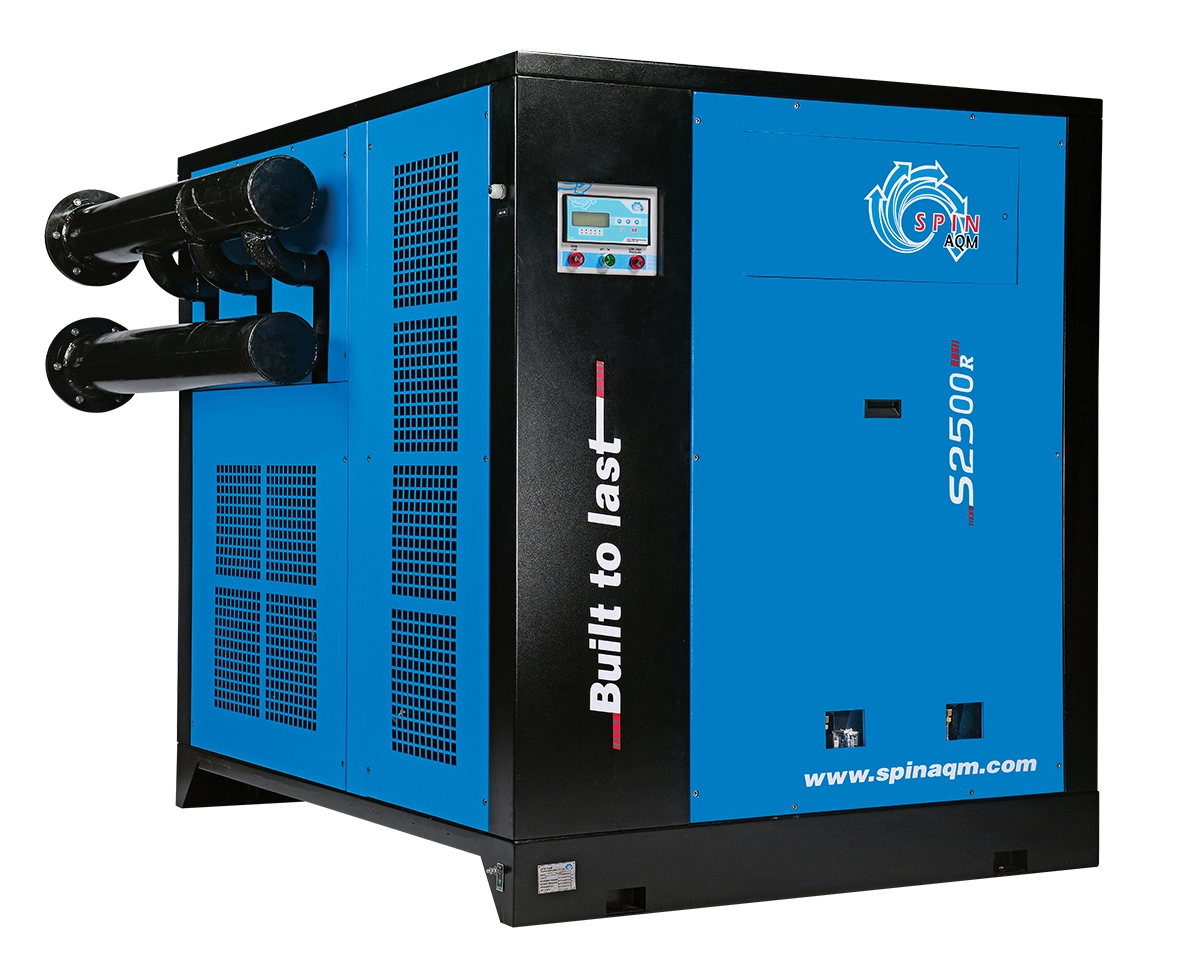

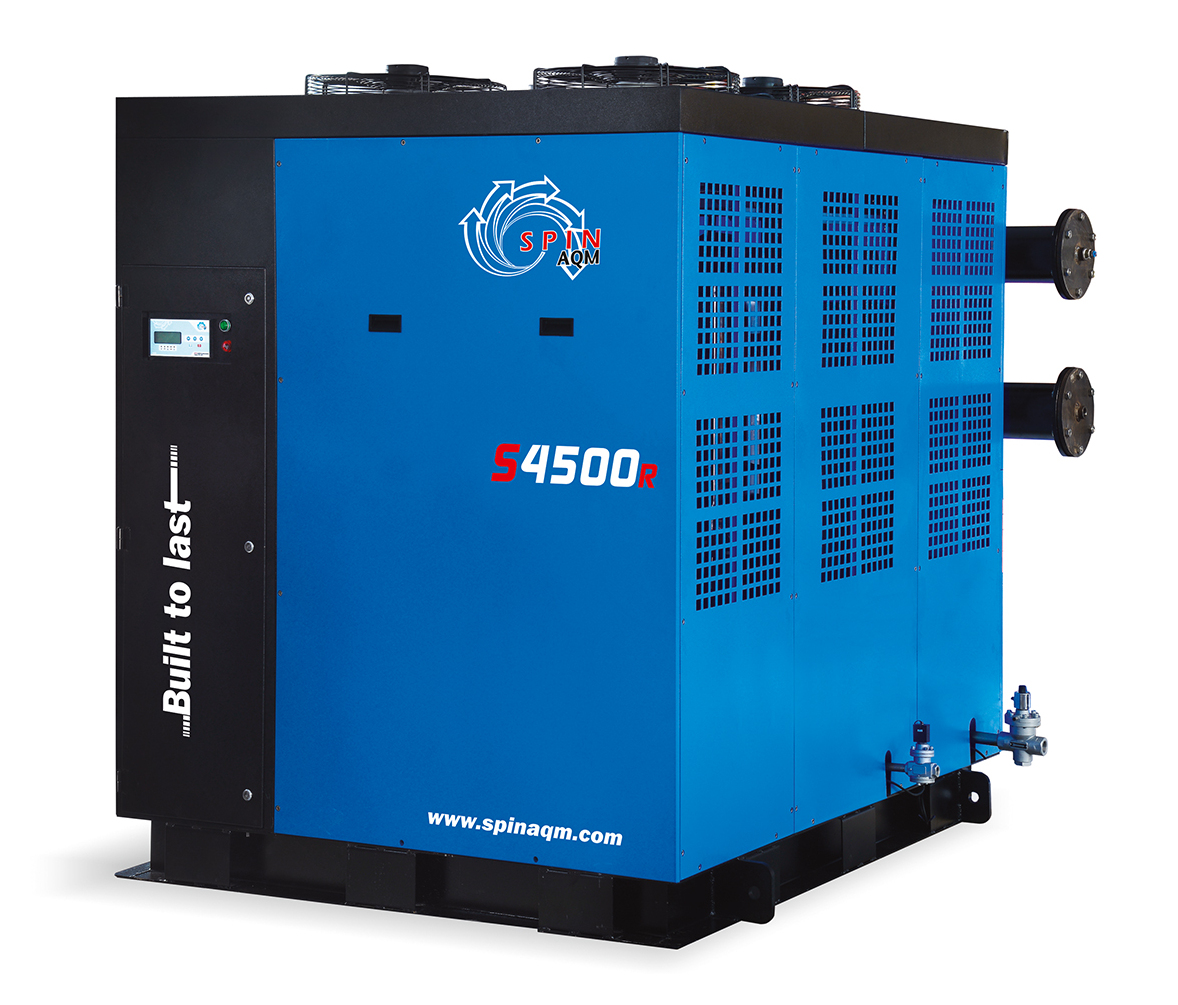

High Volume Refrigerant Air Dryers
SPIN AQM Higher Volume Refrigerant Air Dryers are designed for reliable performance in tropical conditions and perfect solution to deliver clean, dry high volume compressed air to suit continuous and variable load. It is designed in accordance with ISO 7183 standard.
Applications
Pharmaceutical Industry | Process Industry | Textile Industry Aeronautical Industry | Automobile industry | And Many Engineering Industries

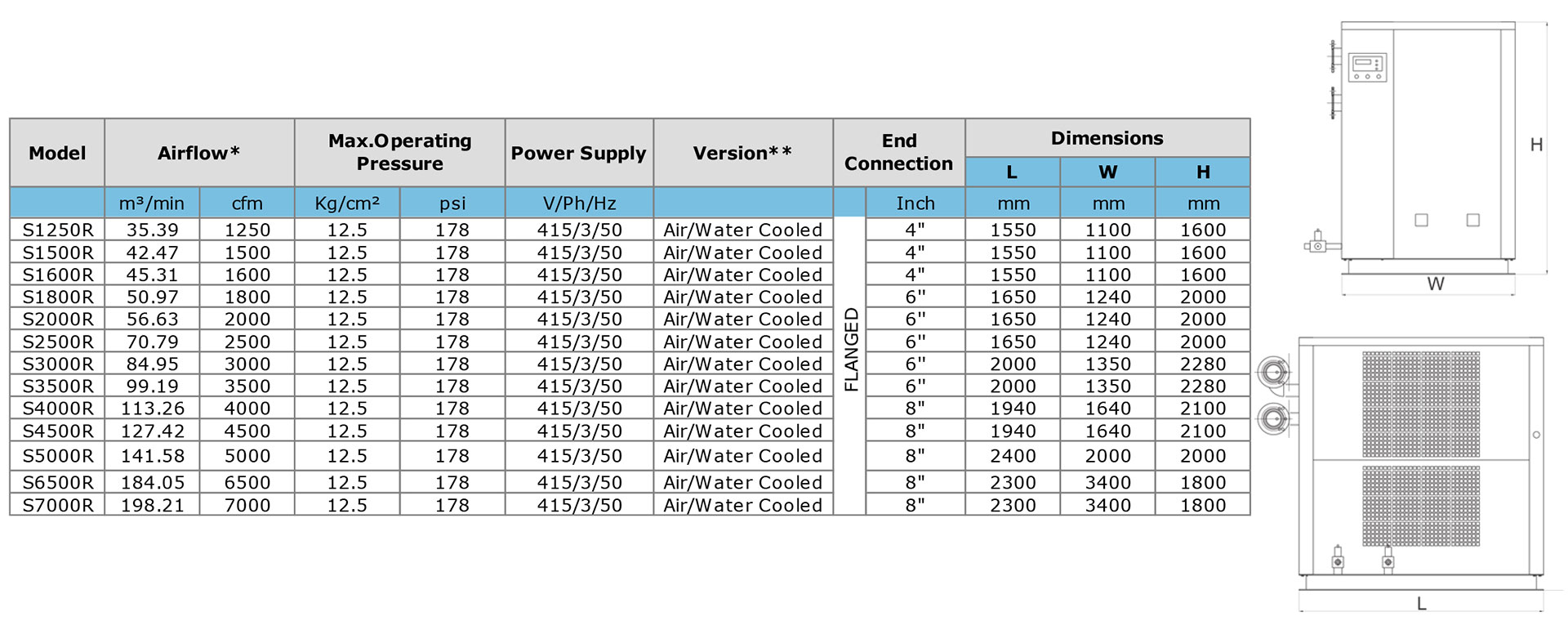

Technical Specifications

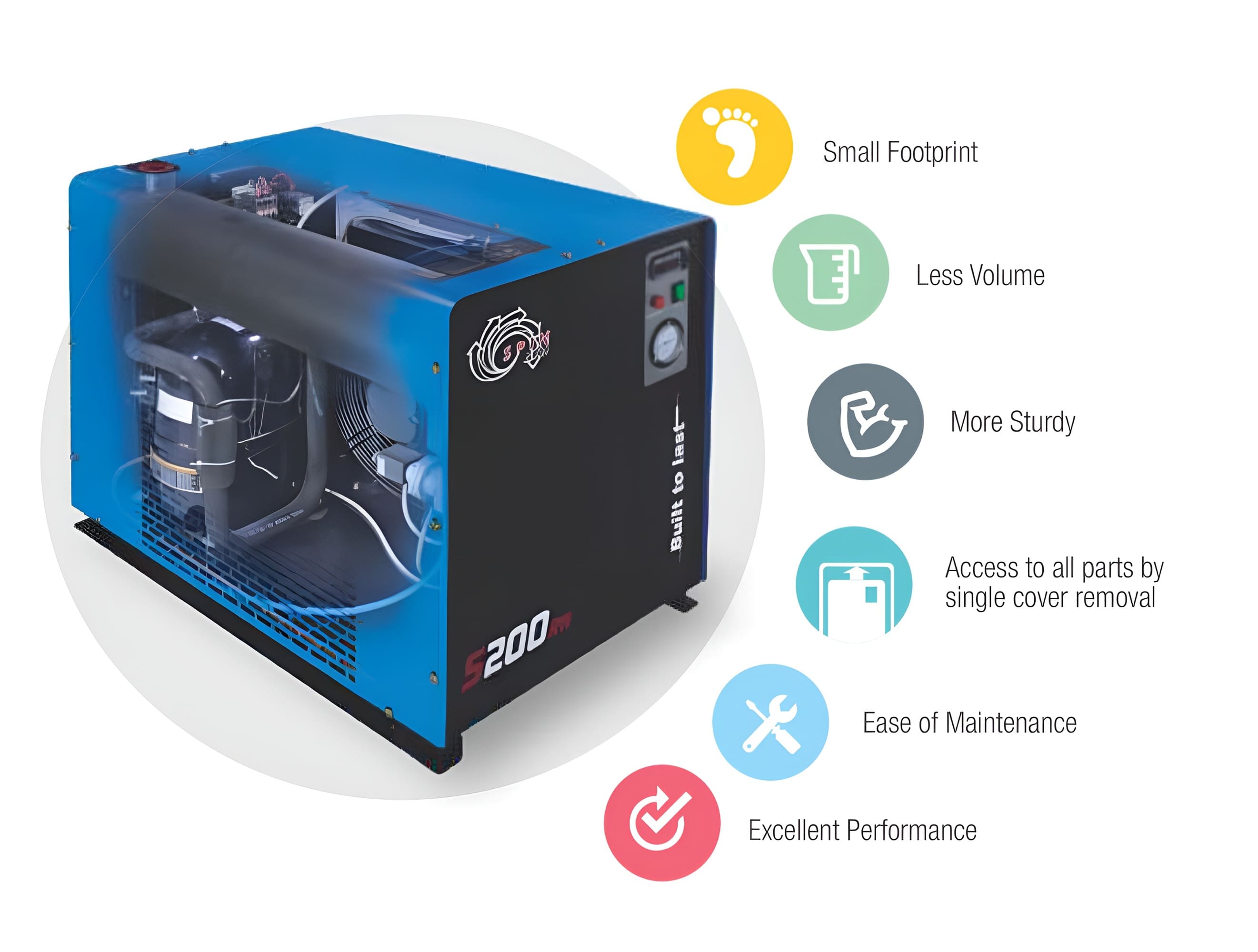

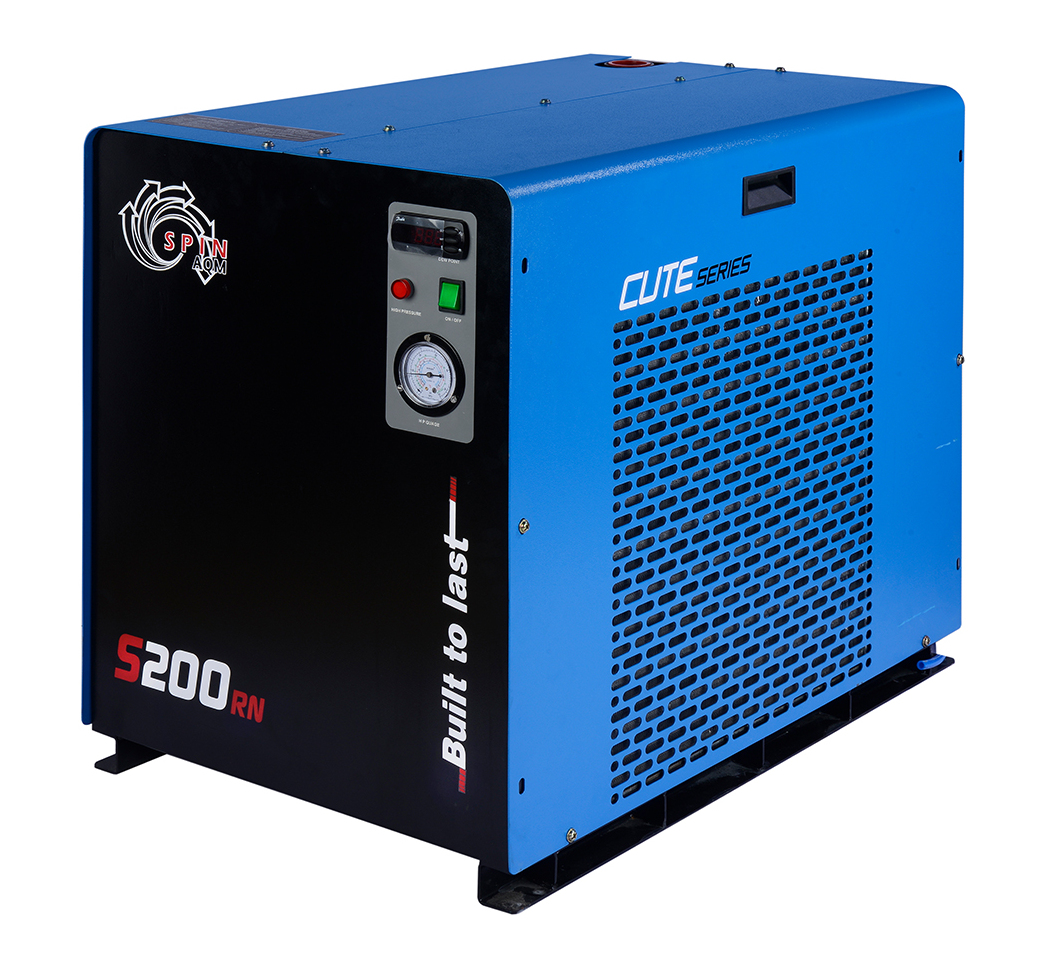

CUTE SERIES
SPIN AQM’s new CUTE Series Refrigerant Air Dryers are compact and sleek in design. They have the smallest volume and footprint with additional safety features. The compact yet clever design of the CUTE series ensures the best performance along with ease of service.
Salient Features
Applications
Automobile Service | CNC Workshops | CMM | Painting Hub | Foundry | Pump Industry | Hospitals

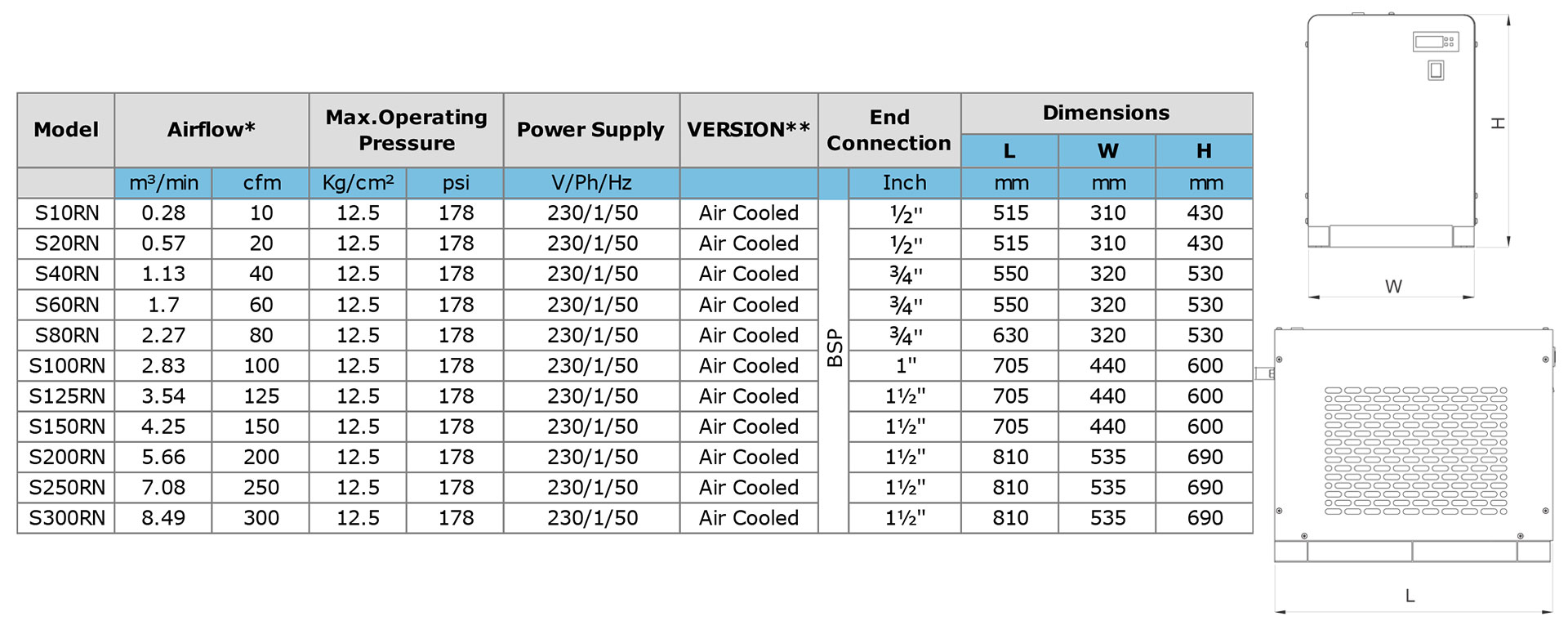

Technical Specifications
Note: Due to continuous engineering improvements, technical specifications are subject to change without prior notice.
DESIGN DATA
Max. Ambient temperature : 40 C
Min. Ambient temperature : 5 C
Max. Inlet temperature : 50 C
Max. Inlet pressure : 12 Kg/cm

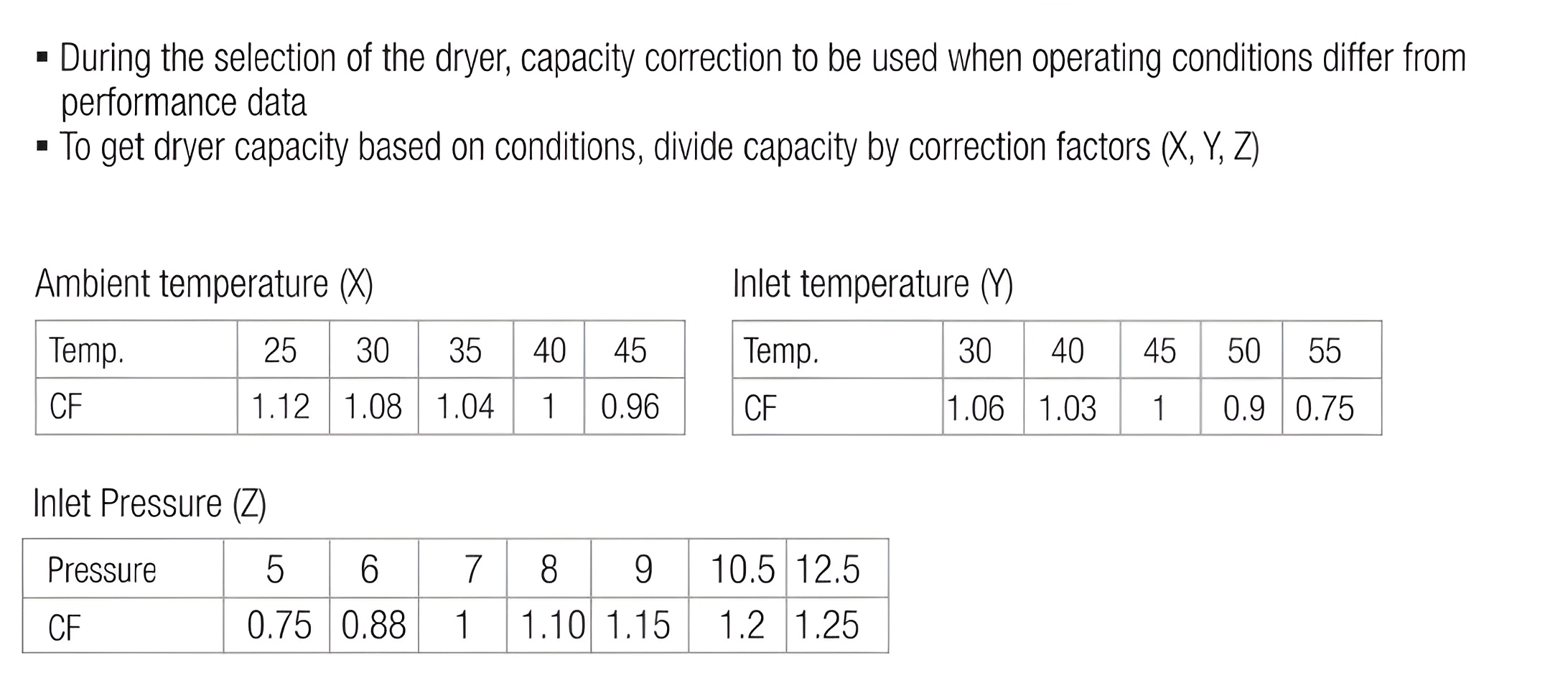

Flow Correction Factor

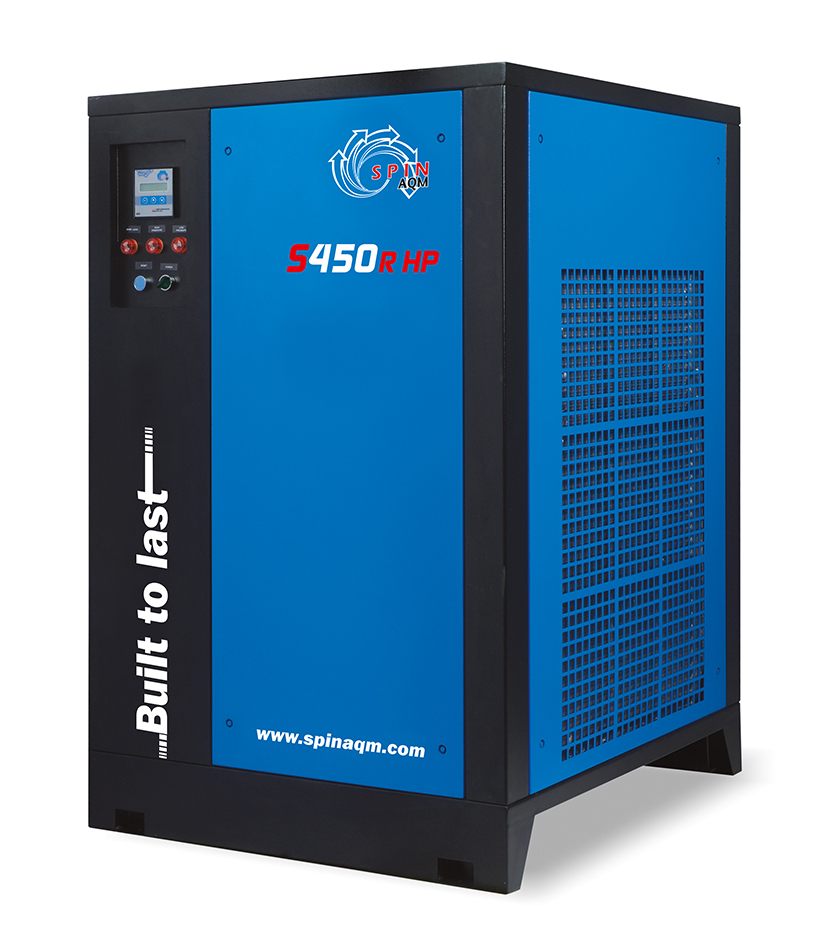

High Pressure Refrigerant Air Dryers
Refrigerant High Pressure Air Dryers are used wherever dry air at high pressure is required. Spin AQM provides HP Series Dryer with an operating pressure range of 40 Kg/cm with the 3 3 flow ranging from 20 cfm to 450 cfm ( 0.57 m / min to 12.74 m /min) with reliable high pressure design and unique safety features.
Applications
Aeronautical Industry | Circuit Breakers | Generator Starting - High Pressure | High Pressure Engine Starters | High Pressure Testing | Marine Applications | Turbine Cooling | Pet Bottling

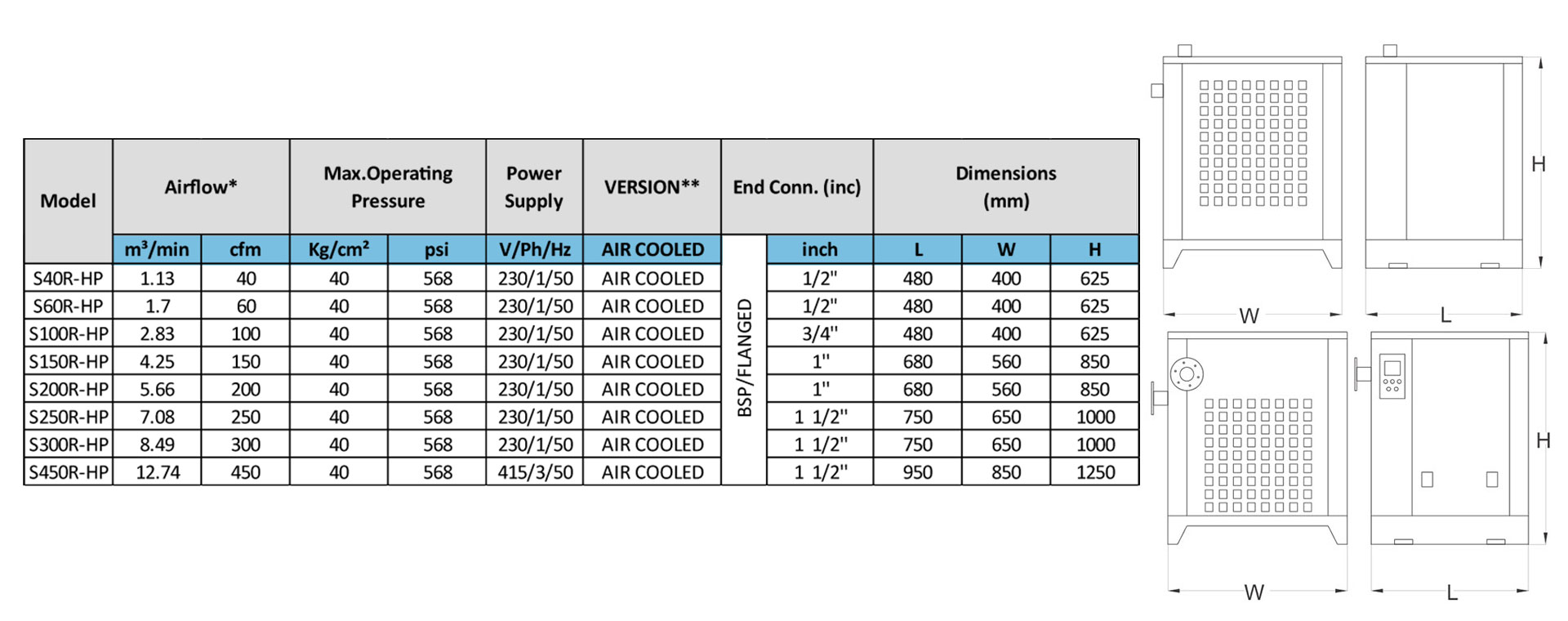

Technical Specifications
Note: Due to continuous engineering improvements, technical specifications are subject to change without prior notice.
